400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace

브랜드 이름:	UVIR
모델 번호:	SHC100019
모크:	10
가격:	협상 가능

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

가열 길이:

255 ± 5 mm

반사기:

하얀색

근무 시간:

5000H

파장:

짧은 파도

OEM/ODM:

많은 유형의 전압, 와트, 길이,베이스, 케이블, 범용 연소 위치를 사용할 수 있습니다

필라멘트 유형:

텅스텐

필라멘트 온도:

1100-2600 ° C

힘:

1850W

전압:

400V

총 길이:

328 밀리미터

파이프 직경:

12.8mm

포장 세부 사항:

실린더에서 각각 램프 .그리고 나서 전문적 합판 박스에서.

강조하다:

255mm Heating Length Quartz Infrared Lamp

1100-2600°C Filament Temperature Halogen Heater Tube

328mm Total Length Infrared Heater Lamp

제품 설명

400V 1850W Single Tube IR Emitters Halogen Quartz Heater Tube for Preheating of Annealing Furnace Lamp

Product Specifications

Attribute	Value
Heating length	255±5mm
Reflector	White
Working Time	5000h
Wave Length	Short wave
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position available
Filament type	Tungsten
Filament temperature	1100-2600°C
Power	1850W
Voltage	400V
Total length	328mm
Pipe diameter	12.8mm

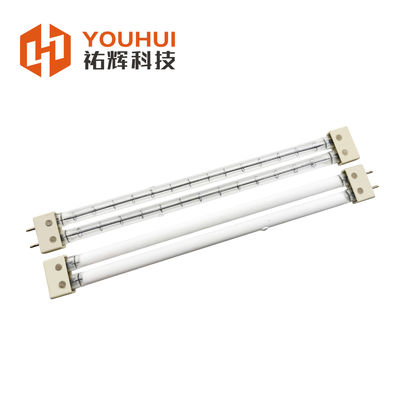

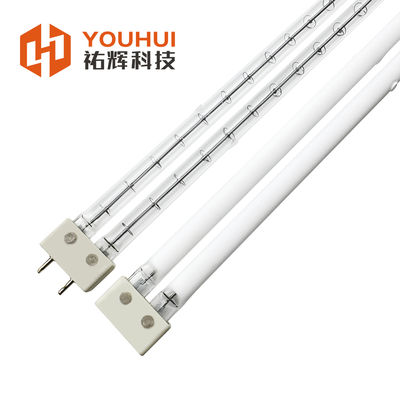

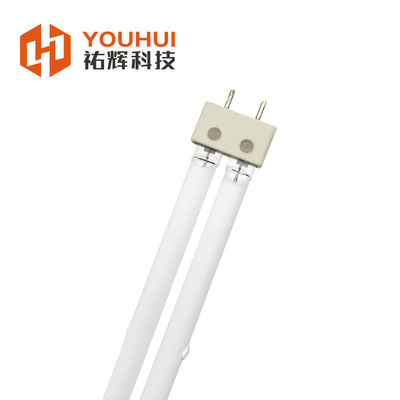

Short Wave Infrared Emitter Transparent Quartz Tube Heating Lamp

Benefits of Infrared Heat

Clear heating: No surface corrosion or dropping off
Quick controllable heat: Heating time is adjustable as needed
Clean and odorless: No risk of contamination to environment or target objects

Application Scenarios

Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

Infrared Heating For Printing Industry

IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products (e.g., banners machine)

Infrared Heating For Food And Chemical Industry

IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice

Infrared Heating For Glass Industry

IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry

IR drying of coatings on textiles
IR heating for laminating of fabrics

Infrared Heating For Electronic Industry

Coatings on electronic components
The aging of the electronic components

OEM Service

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical requirements.

We produce various sizes and types of heat lamps according to customer specifications. Providing drawings helps us create accurate samples for your evaluation.
