Gold Coating Ring Infrared Lamp with 100-7600W Power and 8-14mm Quartz Tube for Efficient Heating

Gold Coating Ring Infrared Lamp with 100-7600W Power and 8-14mm Quartz Tube for Efficient Heating

브랜드 이름: UVIR
모델 번호: -
모크: 협상 가능
가격: 협상 가능
지불 조건: L/C,T/T,웨스턴 유니온,MoneyGram
자세한 정보
원래 장소:
중국
인증:
CE & ROHS
브랜드 이름:
UVIR
전압:
24-575V
코팅:
튜브 직경:
8-14mm
필라멘트 유형:
텅스텐
힘:
100-7600W
재료:
석영 튜브
포장 세부 사항:
실린더에서 각각 램프 .그리고 나서 전문적 합판 박스에서
강조하다:

100-7600W Ring Infrared Lamp

,

24-575V Quartz Infrared Heater

,

8-14mm Infrared Heating Lamp

제품 설명

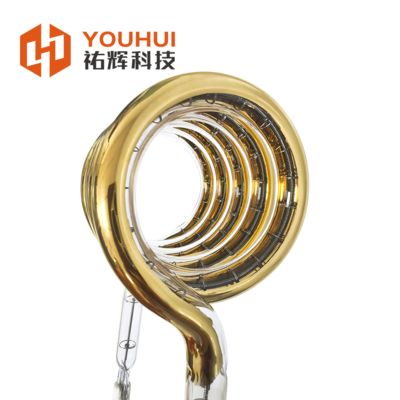

UVIR Gold Coating Quartz Lamp Tube - Single Tube Ring IR Lamp (100-7600W)
Product Specifications
Brand Name UVIR
Voltage 24-575V
Coating Gold
Tube Diameter 8-14mm
Filament Type Tungsten
Power 100-7600W
Material Quartz Tube
Product Overview

IR lamp quartz circular infrared heater lamp with gold coating single tube heating accessories.

Ring Tube Infrared Lamps Features
  • Ring diameter from 39 up to 600 mm
  • Voltage from 24 to 575 V
  • Short, Medium and Long-Wave IR designs
  • Available in various tube colors
  • Tube diameter can be from 8-14 mm
  • Standard stock items for immediate delivery
  • Custom and OEM designs available
Technical Details
Product Name Ring tube infrared lamp
Shape Ring
Voltage 24-575V
Wattage 100-7600W
Coating Gold
Gold Coating Ring Infrared Lamp with 100-7600W Power and 8-14mm Quartz Tube for Efficient Heating 0

QUICK CONNECT RING 39 mm
Stock and Standard (Non-Stock) Ring Short-Wave 0 =39 mm Quick Connect Lamps

Gold Coating Ring Infrared Lamp with 100-7600W Power and 8-14mm Quartz Tube for Efficient Heating 1
# Voltage (V) Wattage (W) Diameter (mm) Model 1 Model 2 Model 3 Model 4
1 115 200 8 RHC800300 RHG800300 RHG800306 RHG800312
2 115 200 10 RHC800301 RHG800301 RHG800307 RHG800313
3 115 450 8 RHC800302 RHG800302 RHG800308 RHG800314
4 220 200 8 RHC800303 RHG800303 RHG800309 RHG800315
5 220 300 8 RHC800304 RHG800304 RHG800310 RHG800316
6 220 450 8 RHC800305 RHG800305 RHG800311 RHG800317
Gold Coating Ring Infrared Lamp with 100-7600W Power and 8-14mm Quartz Tube for Efficient Heating 2 Gold Coating Ring Infrared Lamp with 100-7600W Power and 8-14mm Quartz Tube for Efficient Heating 3
Customized Service
  • All infrared heater lamps are customized according to your practical requirements, with professional technicians providing one-to-one service
  • We can customize 1pc IR lamp for your quality testing at the beginning
  • OEM services available - we can print your logo on infrared heating lamps as required
After-sale Service
  • Warranty Time of Short wave Infrared heat lamp: 5,000 hours
  • During warranty period, any non-man-made quality issues will be replaced immediately at no charge
Frequently Asked Questions

What about the lead time?
15 days after receiving your payment.

How does your factory do regarding quality control?
"Quality is priority." UVIR always emphasizes quality control from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

About customized service?
We can provide the right heat solution for you and offer OEM services, including printing your logo on products as required.

About after-sale service?
Any confirmed quality issues will be compensated to our customer.
